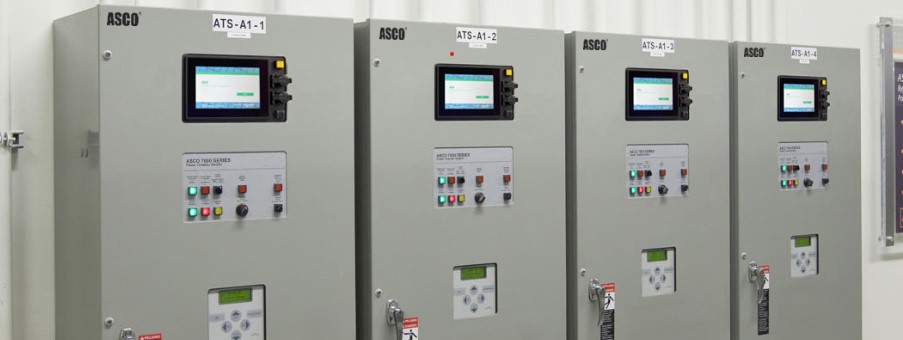

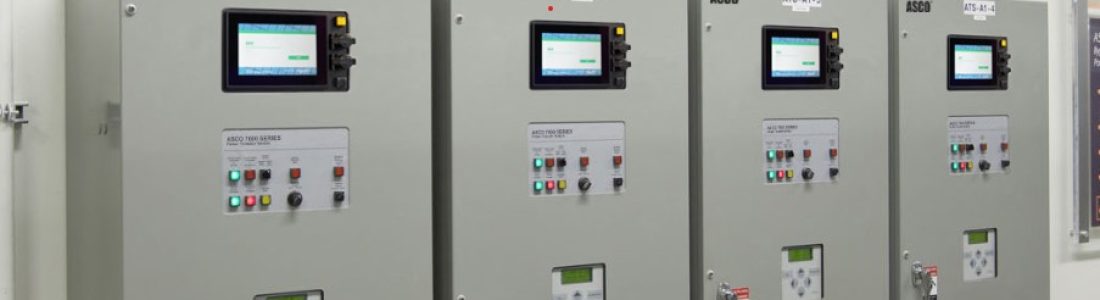

ATS

An Automatic Transfer Switch (ATS) is a critical component in electrical systems that ensures seamless and reliable power supply during outages or fluctuations. Operating within milliseconds, the ATS automatically transfers electrical loads between two power sources—typically between the main power supply and a backup generator or an alternate power source.

The ATS constantly monitors the primary power source. When it detects a voltage drop, interruption, or any other irregularity, it triggers the transfer of the load to the backup source. This automatic and rapid switching prevents downtime and ensures uninterrupted power supply to essential equipment or systems.

ATS units are crucial in scenarios where a consistent power supply is vital, such as in data centers, hospitals, emergency services, and other critical infrastructure. The switch eliminates the need for manual intervention during power disruptions, enhancing the reliability and resilience of electrical systems.

Automatic Transfer Switches (ATS) play a crucial role in ensuring a continuous and reliable power supply during electrical outages. There are usually two main types of ATS’s, contactor based and breaker based. The main difference between contactor-based and breaker-based ATS lies in the mechanism they use to transfer electrical loads between power sources.

1. Contactor-Based ATS:
– Mechanism: Contactor-based ATS utilizes electromechanical contactors to make or break the electrical connections between the power sources.
– Operation: When a power outage or irregularity is detected, the contactors physically move to establish a connection with the alternate power source. This movement is achieved through electromagnetic forces.
– Advantages: Contactor-based ATS is generally simpler in design and tends to be more cost-effective. It is often suitable for applications where rapid switching isn’t a critical requirement.

2. Breaker-Based ATS:
– Mechanism: Breaker-based ATS employs circuit breakers for making and breaking connections between power sources.
– Operation: Instead of physical contactors, breaker-based ATS relies on electronic or digital controls to trip or close circuit breakers rapidly. This electronic control allows for faster and more precise switching between power sources.
– Advantages: Breaker-based ATS is known for its quicker response time, making it suitable for applications where minimizing downtime is critical. The electronic control also allows for additional features such as programmable logic and remote monitoring.

The choice between contactor-based and breaker-based ATS depends on the specific requirements of the application. Contactor-based ATS may be sufficient for less critical systems or where cost is a significant factor. On the other hand, breaker-based ATS is often preferred in applications where a faster and more controlled transfer of power is essential to minimize disruptions, especially in environments where sensitive equipment or systems are in use.
