Reference Designs for Interior Lighting
Office Lighting
Luminaire Specifications:
Luminaire Watts: 31W (80 CRI, 3500K)
Luminaire Lumens : 4100 Lumens
Luminaire Model GE LBR24 Series

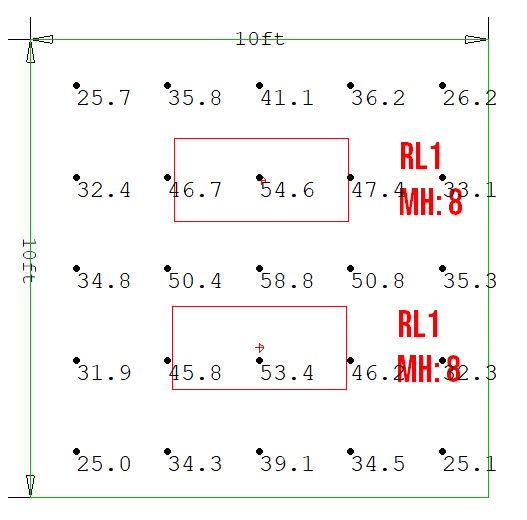

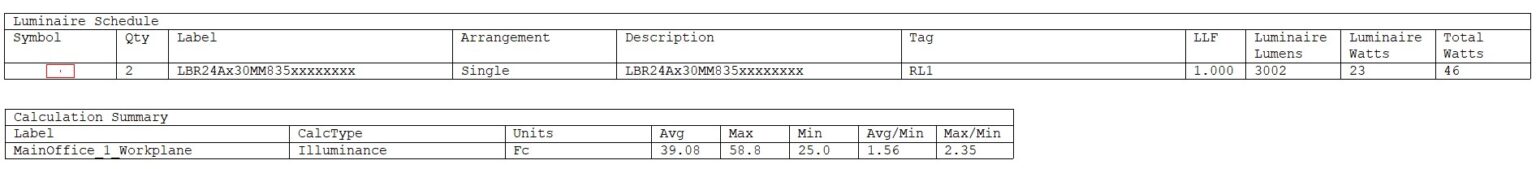

8ft Mounting Height (Private Office, 23W, 3000 Lumens, 2.5ft Workplane)

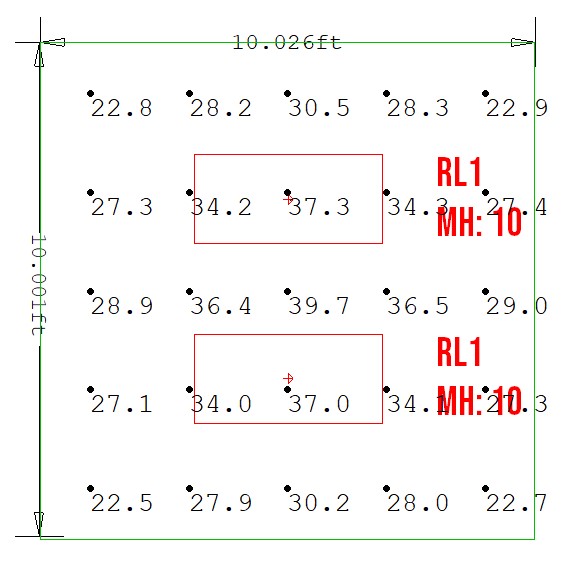

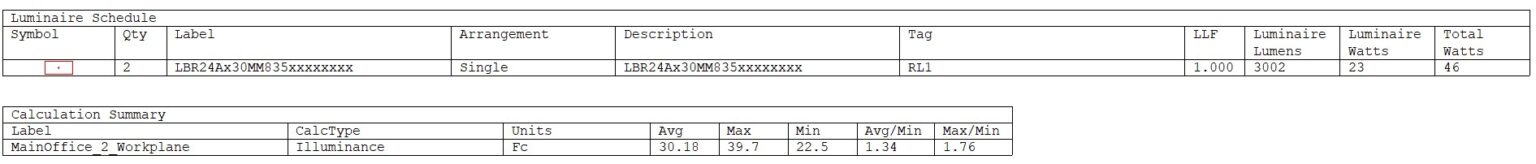

10ft Mounting Height (Private Office, 23W, 3000 Lumens ,2.5ft Workplane)

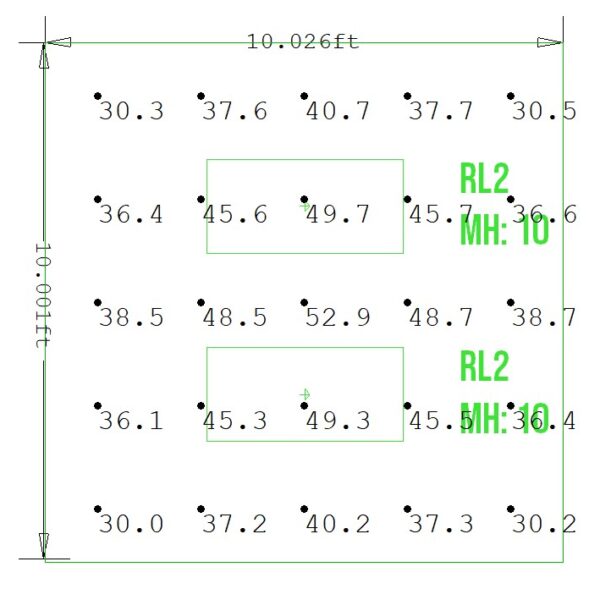

10ft Mounting Height (Private Office, 31W, 4000 Lumens ,2.5ft Workplane)

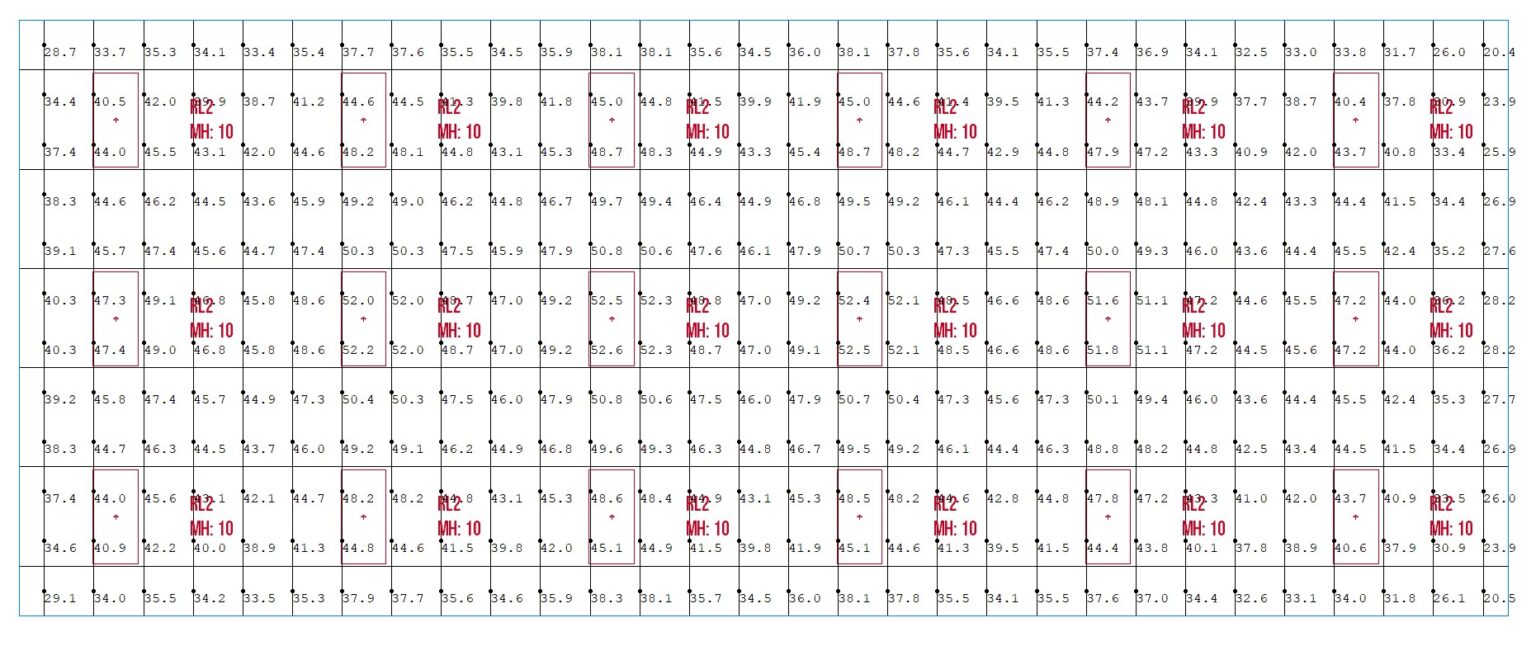

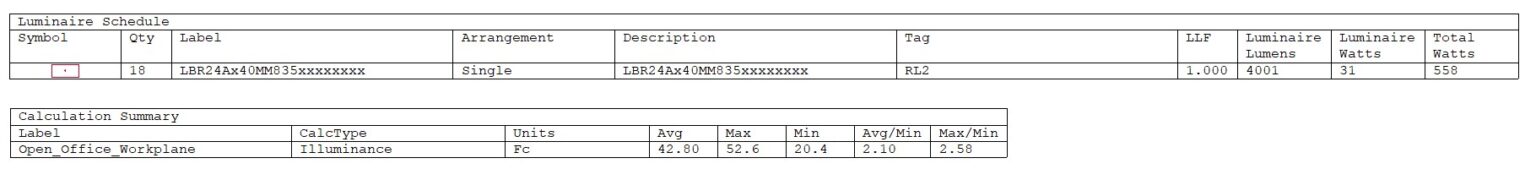

10ft Mounting Height (Large Open Office, 31W, 4000 Lumens ,2.5ft Workplane 10ftx8ft Spacing)

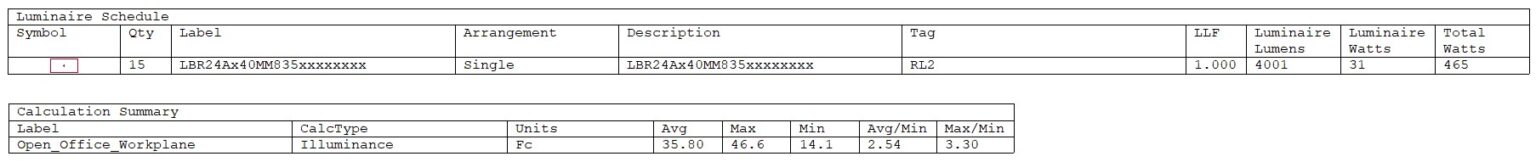

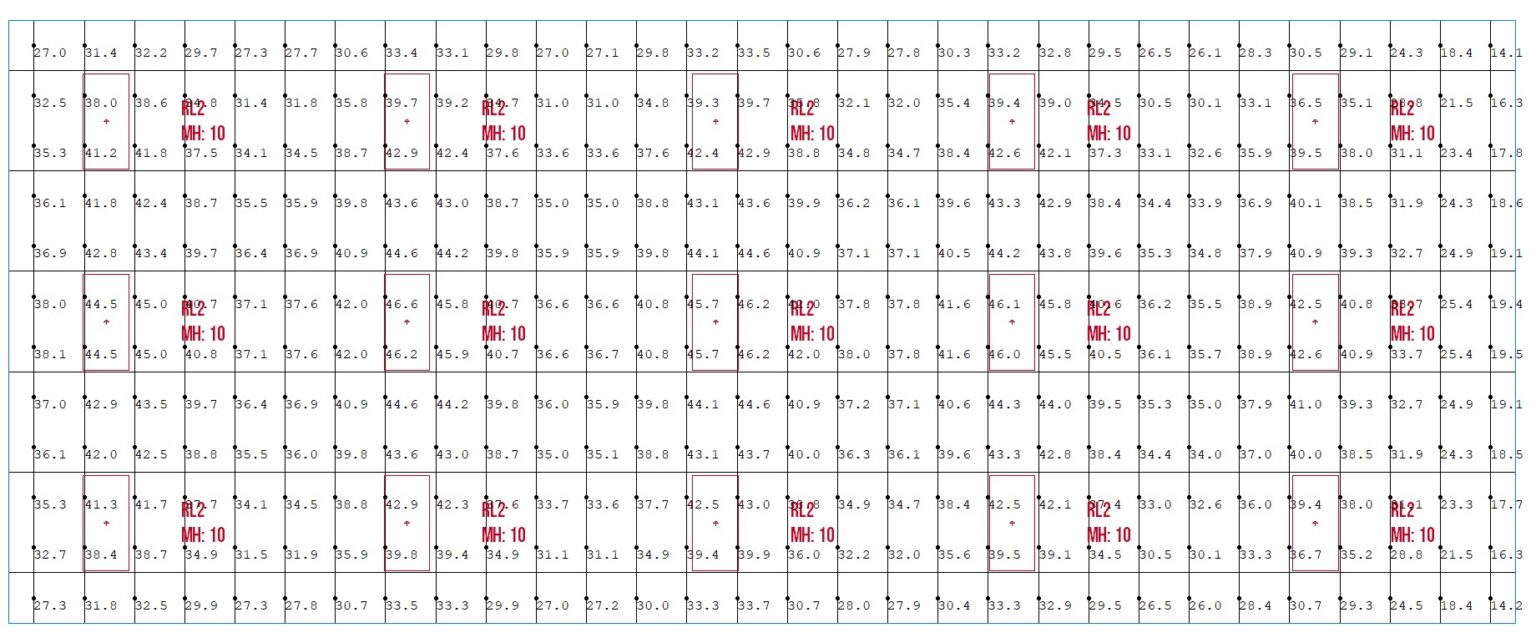

10ft Mounting Height (Large Open Office, 31W, 4000 Lumens ,2.5ft Workplane 12ftx8ft Spacing)

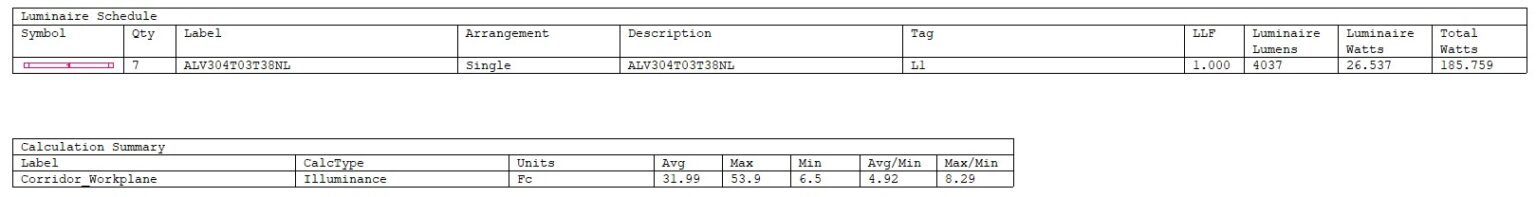

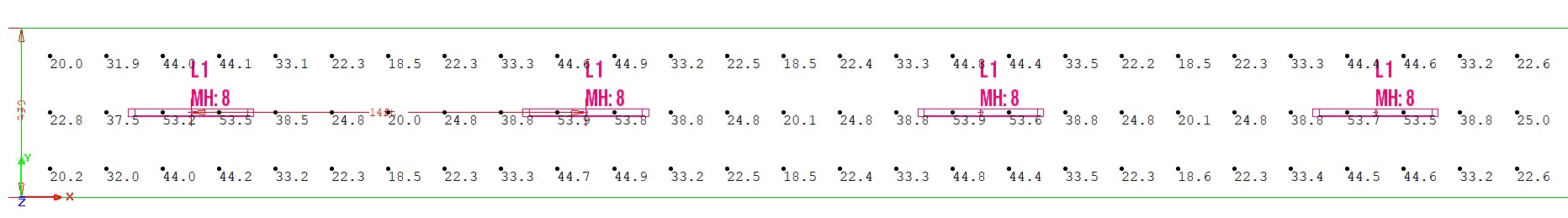

Corridor Lighting (26W, 4000 Lumens ,2.5ft Workplane, 6ft Wide Corridor 14ft Spacing) - Strip Light
